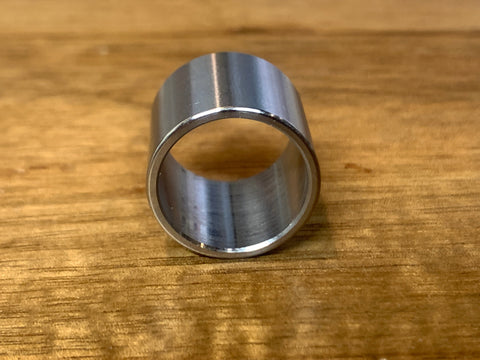

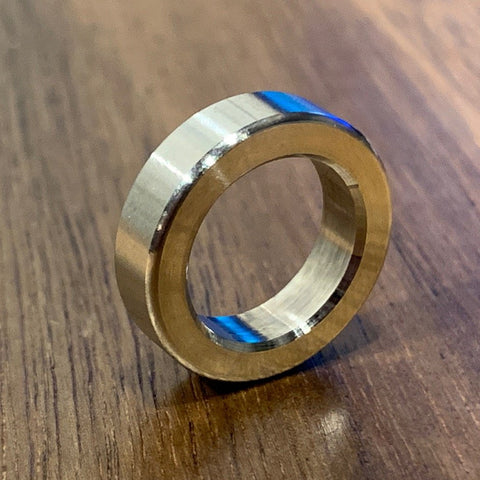

EXTSW Stepped 14.02 mm ID x 22 mm OD x 22 mm thick - Flange 22 mm x 5.5 mm thick

EXTSW Stepped 14.02 mm ID x 22 mm OD x 22 mm thick  - Flange 22 mm x 5.5 mm thick

Actual size .551” ID x 22 mm OD x 22 mm thick

Stepped 22 mm x  5.5 mm

Overall length 22 mm

(+/- .003 on ID, Flange OD and thickness and overall length dimensions)

(+.000/-.001 on OD)

.030 inch Radius OD / Countersunk ID (no sharp edges)

Made in USA on a CNC lathe

Just contact me if you need a custom size washer.

316 Grade Alloy Stainless contain a higher percentage of nickel than 304SS. The resultant composition gives a much improved corrosion resistance in many aggressive environments. The molybdenum addition ensures more resistance to pitting and crevice corrosion in chloride-containing media, sea water and chemical environments such as sulfuric acid compounds, phosphoric and acetic acids. The lower rate of general corrosion in mildly corrosive environments gives 316 SS a good atmospheric corrosion resistance in polluted marine atmospheres.


316 SS offers good strength and creep resistance and also possesses excellent mechanical and corrosion-resistant properties at sub-zero temperatures.
