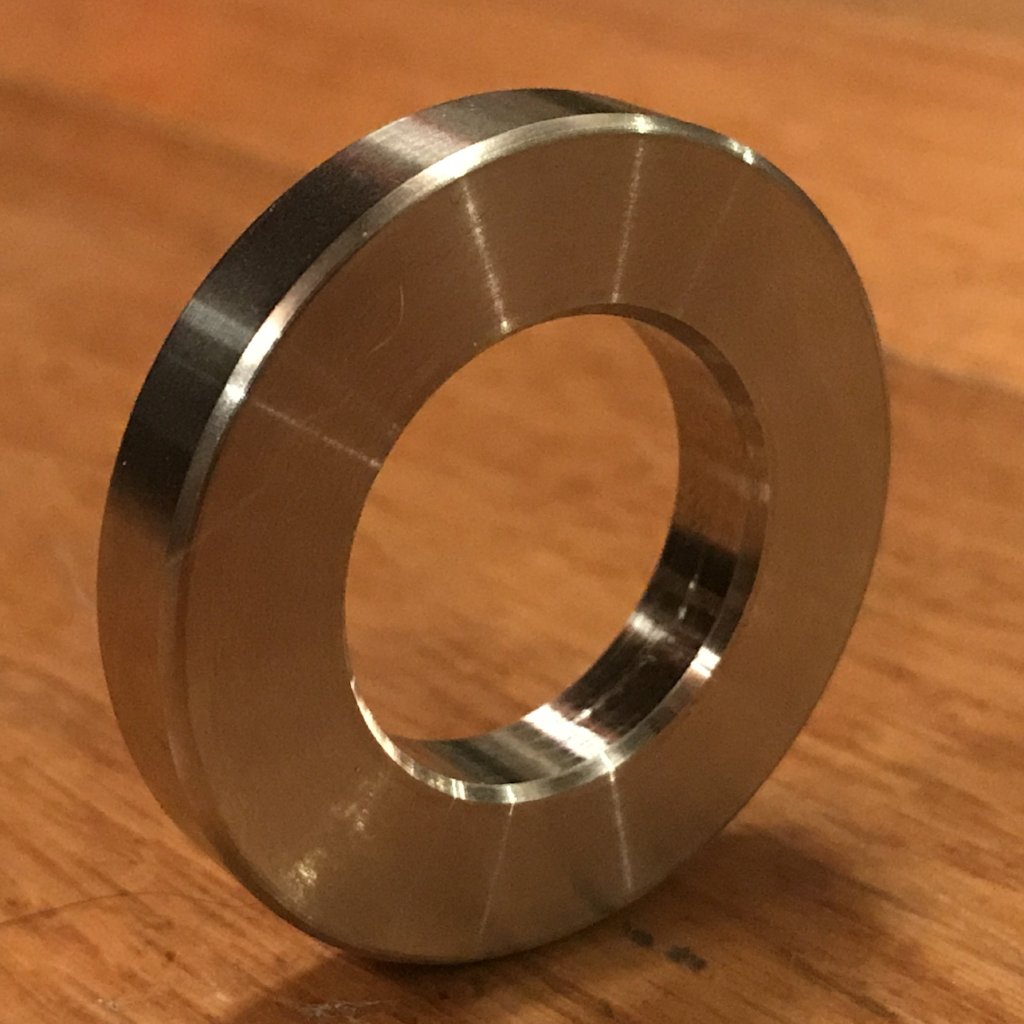

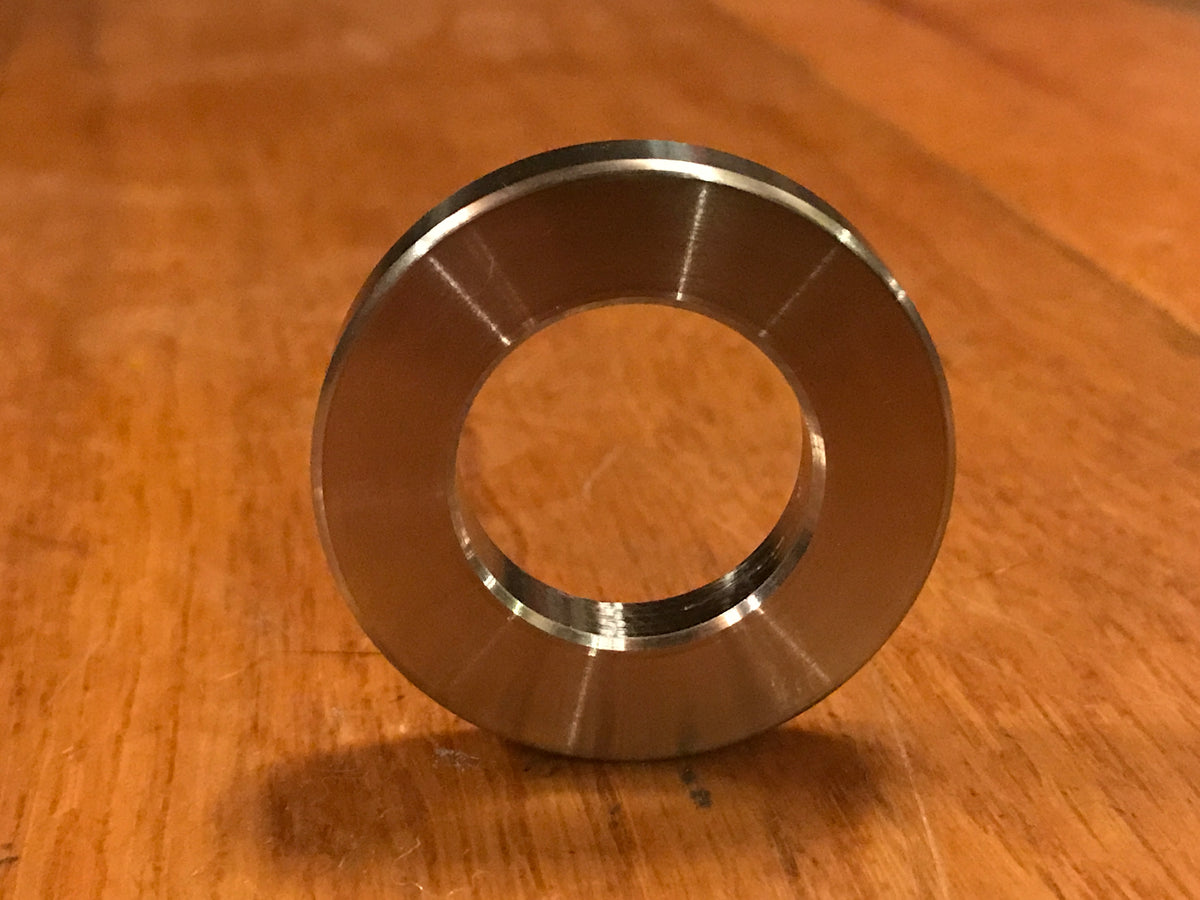

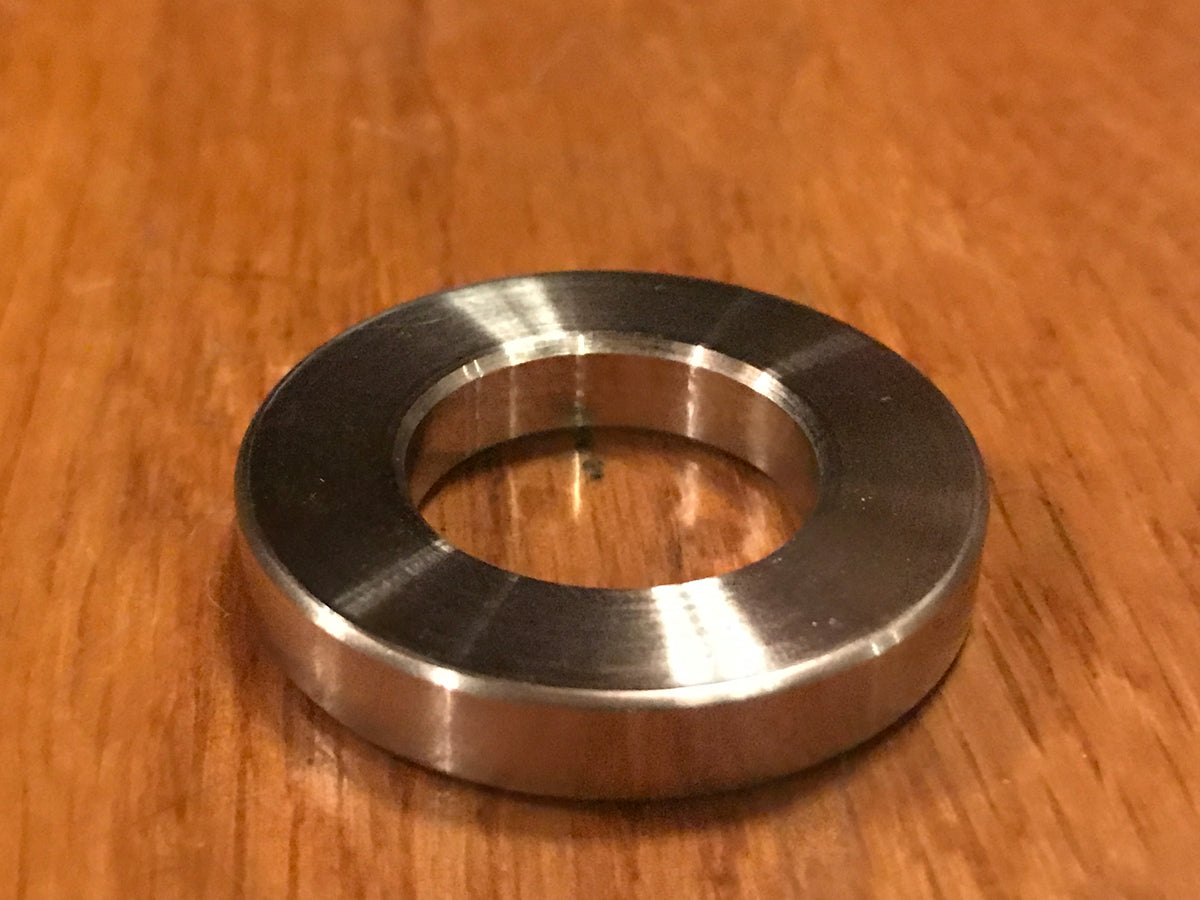

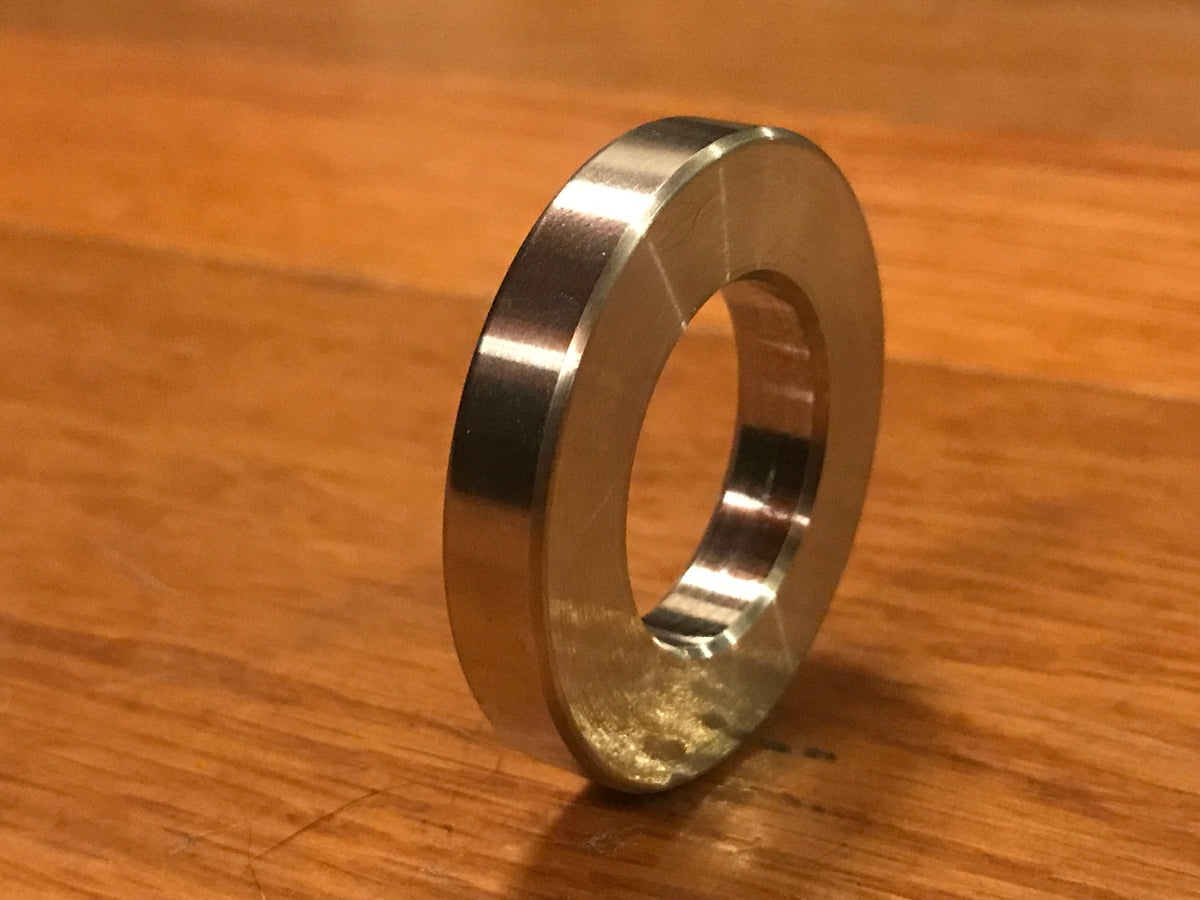

EXTSW 21.05 mm ID x 38 mm OD x 6.3 mm thick 316 Stainless Washer

EXTSW 21.05 mm ID x 38 mm OD x 6.3 mm thick 316 Stainless Washer


EXTSW 21.05 mm ID x 38 mm OD x 6.37 mm thick 316 / A4 Alloy Stainless Washer

 21.05 mm ID x 37.84 mm OD x 6.35 mm Thick (+/- .076 mm on all dimensions)
 .828inch        1.490inch          .250inch          (+/- .003 on all dimensions)

0.76mm Radius OD / Countersunk ID (no sharp edges)

 Made in USA on a CNC lathe

It is a beautiful fit for your 20mm Stainless bolts

Just contact me if you need a custom size washer.

316 Grade Alloy Stainless contain a higher percentage of nickel than 304SS. The resultant composition gives a much improved corrosion resistance in many aggressive environments. The molybdenum addition ensures more resistance to pitting and crevice corrosion in chloride-containing media, sea water and chemical environments such as sulfuric acid compounds, phosphoric and acetic acids. The lower rate of general corrosion in mildly corrosive environments gives 316 SS a good atmospheric corrosion resistance in polluted marine atmospheres.

316 SS offers good strength and creep resistance and also possesses excellent mechanical and corrosion-resistant properties at sub-zero temperatures.
