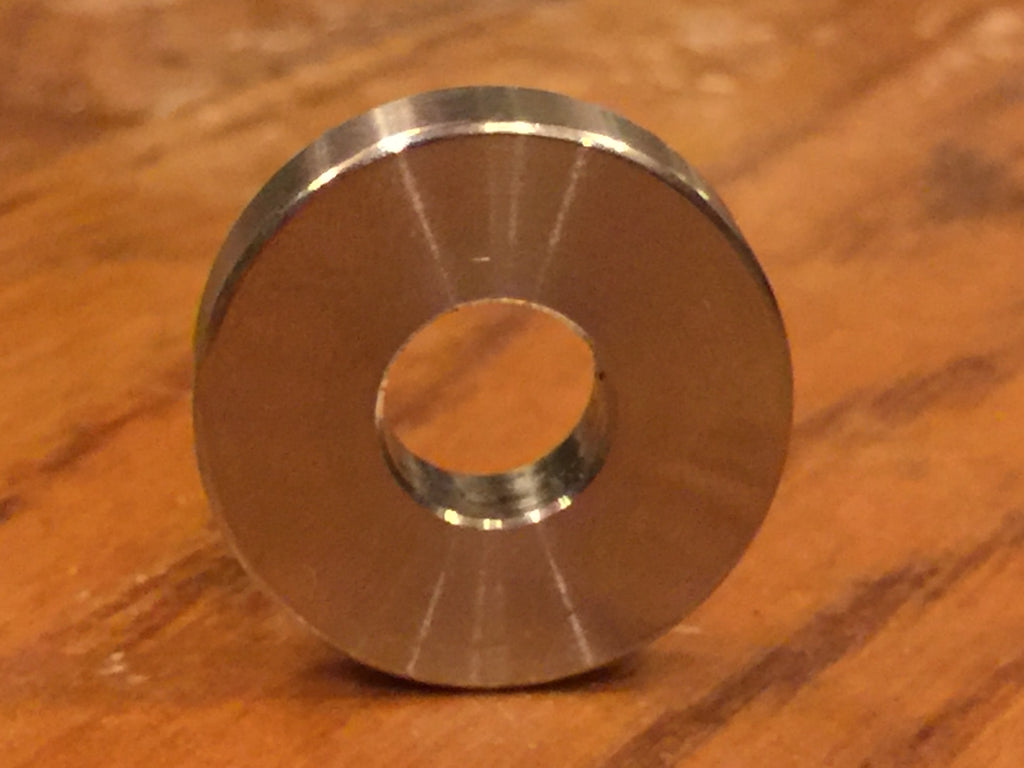

EXTSW 13.21 mm ID x 25 mm OD x 10 mm thick 316 Stainless Spacer

extsw 13.21 mm ID x 25 mm OD x 10 mm thick 316 Alloy Stainless Spacers

Actual size .520" ID x .984" OD x .393 Thick
(+/-.003 all dimensions)
Actual size 13.21 mm ID x 25 mm OD x 10 mm Thick
(+/-.076 all dimensions)

.030 inch Radius OD / Countersunk ID (no sharp edges)

Made in USA on a CNC lathe

It is a beautiful fit for your 13 mm Stainless studs/ shafts

We can make as many as you need, just contact me.

316 Grade Alloy Stainless contain a higher percentage of nickel than 304SS. The resultant composition gives a much improved corrosion resistance in many aggressive environments. The molybdenum addition ensures more resistance to pitting and crevice corrosion in chloride-containing media, sea water and chemical environments such as sulfuric acid compounds, phosphoric and acetic acids. The lower rate of general corrosion in mildly corrosive environments gives 316 SS a good atmospheric corrosion resistance in polluted marine atmospheres.


316 SS offers good strength and creep resistance and also possesses excellent mechanical and corrosion-resistant properties at sub-zero temperatures.
