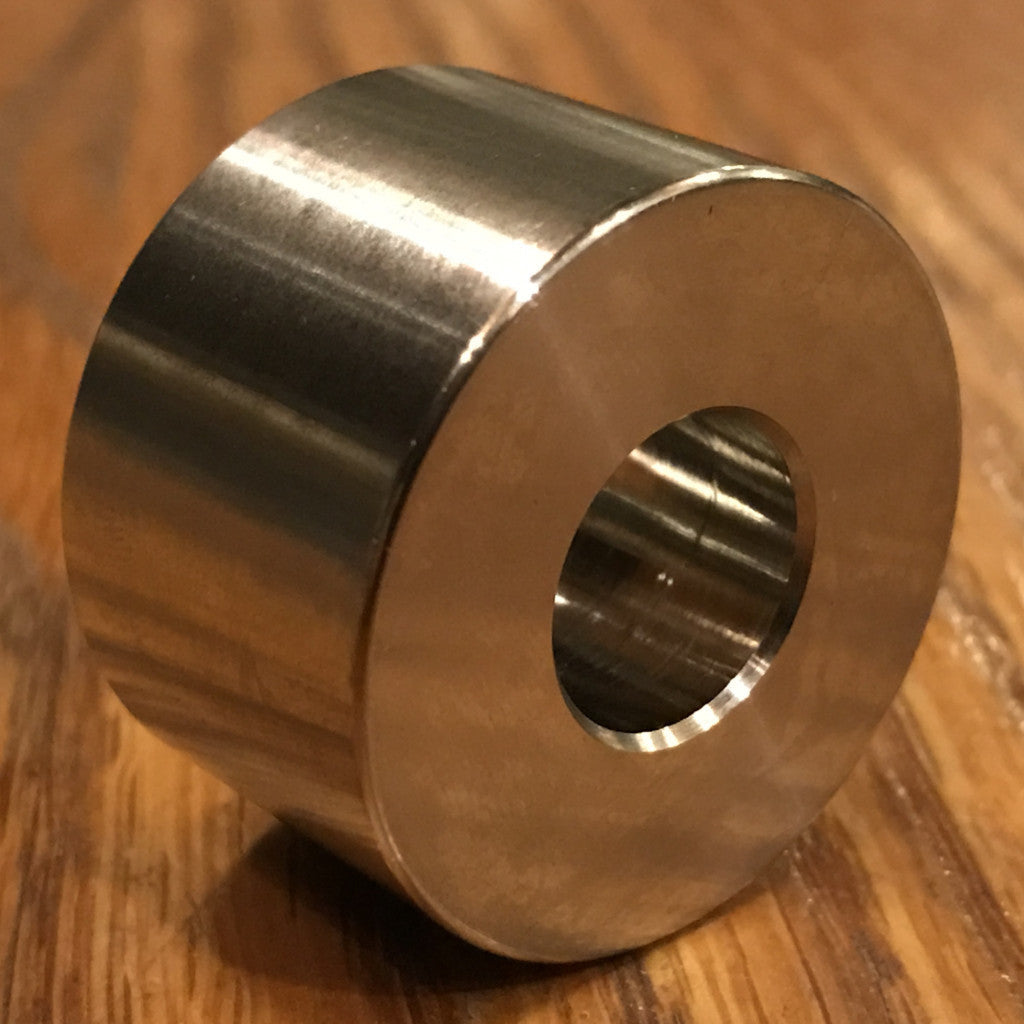

Custom EXTSW 1/2” ID x 1 1/4” OD x 9/16" thick 316 Stainless Spacer
Custom EXTSW 1/2” ID x 1 1/4” OD x 9/16" thick 316 Stainless Spacer.
Make sure the sizes and tolerance will work for you.
Custom orders are not returnable.
Actual size is .506" ID x 1.240" OD x .563" thick
(+/-.003" thick on all dimensions)
.030 inch Radius OD / Countersunk ID (no sharp edges)
Made in USA on a CNC lathe
It is a beautiful fit for your 1/2” Stainless bolts
316 Stainless Alloy is weldable and has the best corrosion resistance
We can make as many as you need, just contact me.
316 Grade Alloy Stainless contain a higher percentage of nickel than 304SS. The resultant composition gives a much improved corrosion resistance in many aggressive environments. The molybdenum addition ensures more resistance to pitting and crevice corrosion in chloride-containing media, sea water and chemical environments such as sulfuric acid compounds, phosphoric and acetic acids. The lower rate of general corrosion in mildly corrosive environments gives 316 SS a good atmospheric corrosion resistance in polluted marine atmospheres.
316 SS offers good strength and creep resistance and also possesses excellent mechanical and corrosion-resistant properties at sub-zero temperatures.
