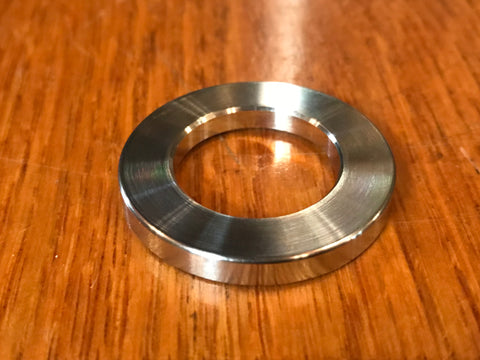

EXTSW 7/8" ID x 1 1/2" OD x 3/16" Thick 316 Stainless Washer
EXTSW 7/8” ID x 1 1/2” OD x 3/16” thick 316 alloy stainless washers
Actual size .903 ID x 1.490” OD x .188 thick
(+/- .003 on all dimensions)
.030 inch Radius OD / Countersunk ID (no sharp edges)
Made in USA on a CNC lathe
It is a beautiful fit for your 7/8” Stainless bolts
Just contact me if you need a custom size washer.
Some other websites will list their washers as "18-8" or just "stainless steel".
316 Grade Alloy Stainless contain a higher percentage of nickel than 304SS. The resultant composition gives a much improved corrosion resistance in many aggressive environments. The molybdenum addition ensures more resistance to pitting and crevice corrosion in chloride-containing media, sea water and chemical environments such as sulfuric acid compounds, phosphoric and acetic acids. The lower rate of general corrosion in mildly corrosive environments gives 316 SS a good atmospheric corrosion resistance in polluted marine atmospheres.
316 SS offers good strength and creep resistance and also possesses excellent mechanical and corrosion-resistant properties at sub-zero temperatures.
