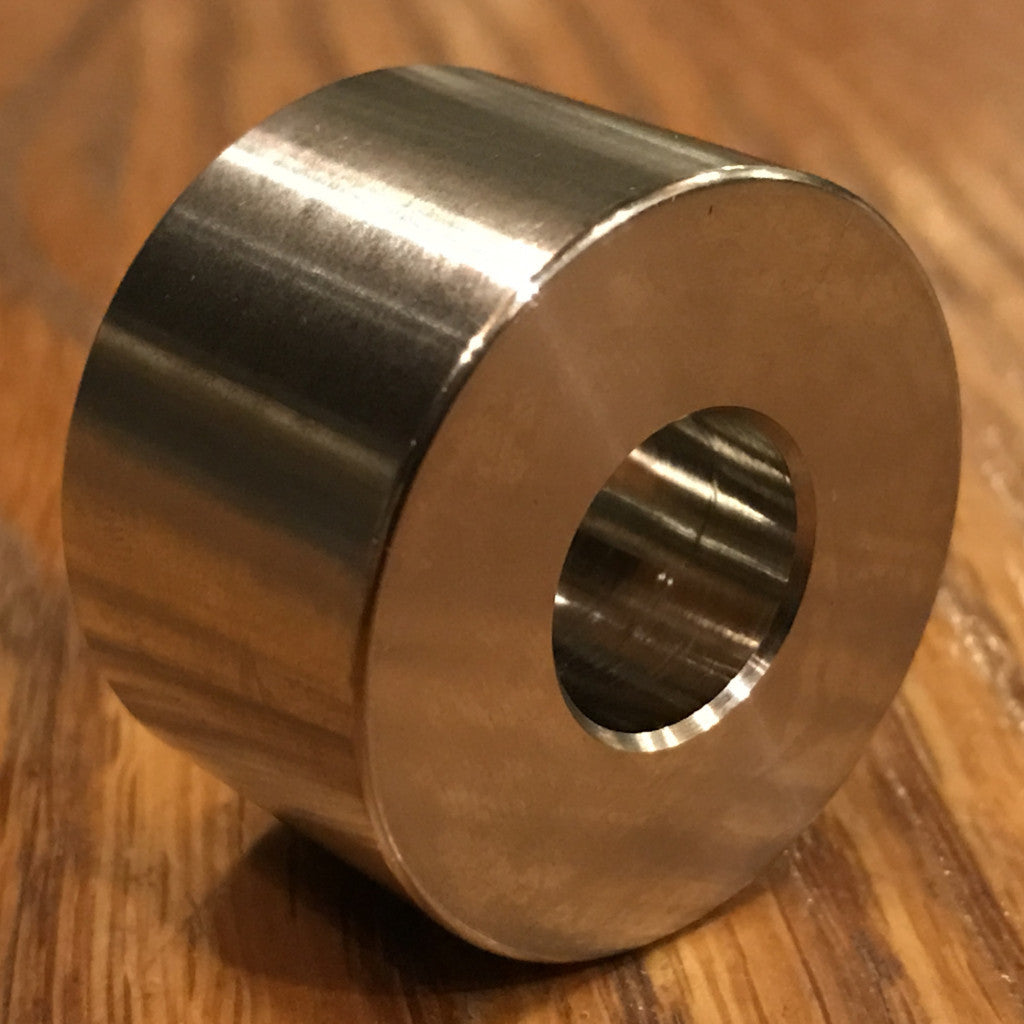

EXTSW 1/2” ID x ( 1 1/4” /1.240") OD x 5/8" thick 316 Stainless Spacer

EXTSW 1/2” ID x 1 1/4” OD x 5/8" thick 316 Stainless Spacer.

Actual size is .507" ID x 1.240" OD x .625" thick

(+/-.003" thick on all dimensions)

.030 inch Radius OD / Countersunk ID (no sharp edges)

Made in USA on a CNC lathe

It is a beautiful fit for your 1/2” Stainless bolts

(Not 18/8, Not 303, Not 304)

316 Stainless Alloy is weldable and has the best corrosion resistance

We can make as many as you need, just contact me.


316 Grade Alloy Stainless contain a higher percentage of nickel than 304SS. The resultant composition gives a much improved corrosion resistance in many aggressive environments. The molybdenum addition ensures more resistance to pitting and crevice corrosion in chloride-containing media, sea water and chemical environments such as sulfuric acid compounds, phosphoric and acetic acids. The lower rate of general corrosion in mildly corrosive environments gives 316 SS a good atmospheric corrosion resistance in polluted marine atmospheres.


316 SS offers good strength and creep resistance and also possesses excellent mechanical and corrosion-resistant properties at sub-zero temperatures.
