(26 pc) EXTSW Custom Flanged Spacers
Make sure the sizes and tolerance will work for you.
Custom orders are not returnable.

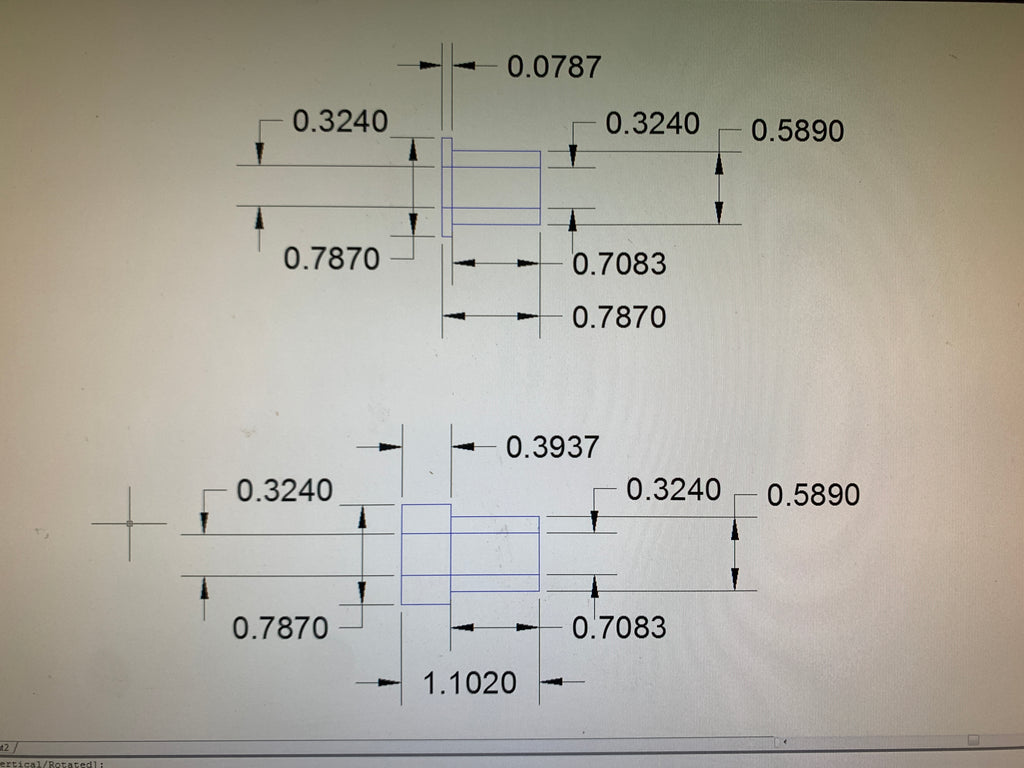

Brake spacers (5 pc) Actual size .324"/ 8.3 mm ID x 15 mm/.589" OD x .787"/ 20 mm overall length. $18.80 each
Flange .787"/ 20 mm diameter / .0787"/ 2 mm thickness
Overall length 20 mm
(+/- .003 on ID, Flange OD and thickness and overall length dimensions)
(+.000/-.001 on 15 mm OD)
Shifter spacers (5 pc) Actual size .324"/ 8.3 mm ID x 15 mm/.589" OD x 1.102"/ 28 mm overall length Flange .787" diameter / .393" thickness. $19.80 each

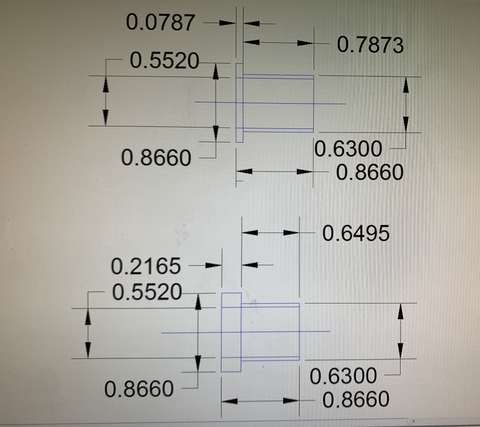

Swing arm #3 (4 pc) Actual size .552" ID x 630” OD x .866 long $18.00 each
Flange .866" diameter / .0787" thick
(+/- .003 on all dimensions)
Swing arm #4 (4 pc) Actual size .552" ID x 630” OD x .866 long $18.00 each
Flange .866" diameter / .2165" thick
(+/- .003 on all dimensions)
(8 pc) 14.3 mm ID x 18 mm OD x 48 mm thick 316 stainless spacer $12.80 each
Actual size .567" ID x 708” OD x 1.890 long
(+/- .003 on all dimensions)
$8.15 USPS Priority Mail
Made in USA on a CNC lathe
316 Grade Alloy Stainless contain a higher percentage of nickel than 304SS. The resultant composition gives a much improved corrosion resistance in many aggressive environments. The molybdenum addition ensures more resistance to pitting and crevice corrosion in chloride-containing media, sea water and chemical environments such as sulfuric acid compounds, phosphoric and acetic acids. The lower rate of general corrosion in mildly corrosive environments gives 316 SS a good atmospheric corrosion resistance in polluted marine atmospheres.
316 SS offers good strength and creep resistance and also possesses excellent mechanical and corrosion-resistant properties at sub-zero temperatures.
