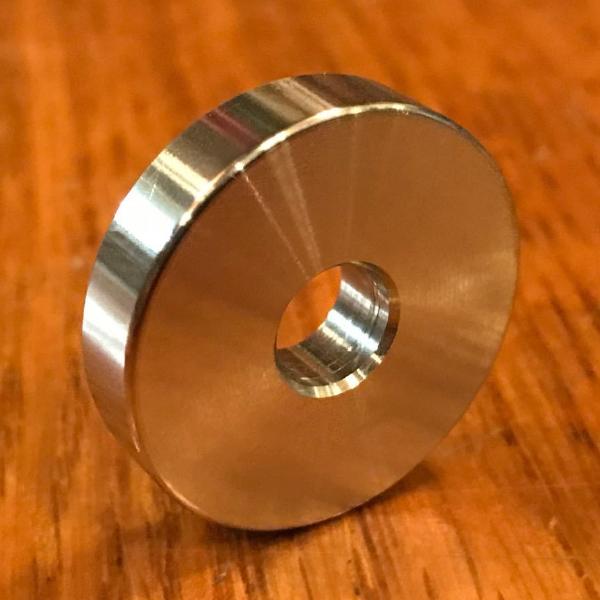

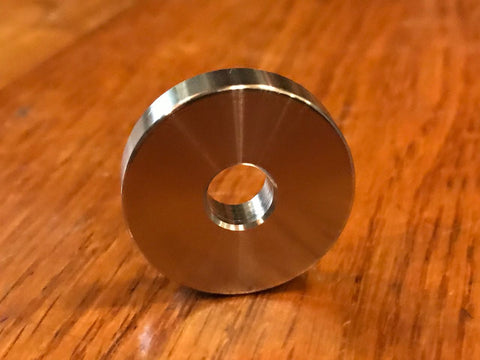

EXTSW 5/16” ID x 1 1/8” OD x 1/8” Thick 316 Alloy Stainless Washers
Actual size .323 ID x 1.115” OD x .125" thick
(+/- .003" on all dimensions)
.030 inch Radius OD / Countersunk ID (no sharp edges)
Made in USA on a CNC lathe

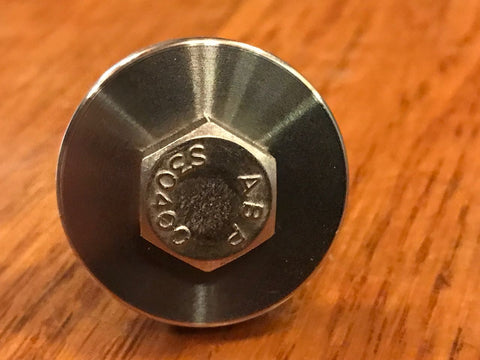

It is a beautiful fit for your 5/16” Stainless Bolts
316 Grade Alloy Stainless contain a higher percentage of nickel than 304SS. The resultant composition gives a much improved corrosion resistance in many aggressive environments. The molybdenum addition ensures more resistance to pitting and crevice corrosion in chloride-containing media, sea water and chemical environments such as sulfuric acid compounds, phosphoric and acetic acids. The lower rate of general corrosion in mildly corrosive environments gives 316 SS a good atmospheric corrosion resistance in polluted marine atmospheres.
Just contact me if you need a custom size washer.
316 SS offers good strength and creep resistance and also possesses excellent mechanical and corrosion-resistant properties at sub-zero temperatures.
