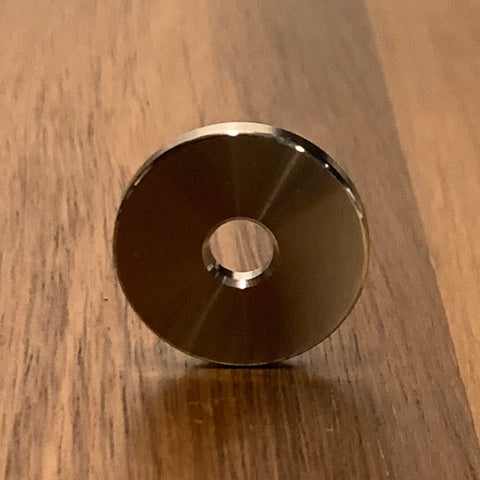

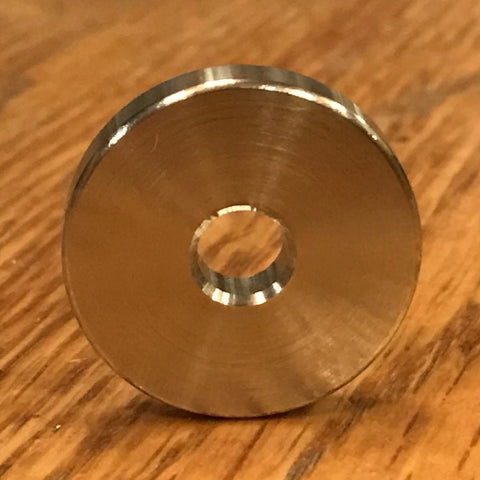

EXTSW 3/4" / .757” ID x 1 1/4” x 1 inch long 316 stainless Shaft spacer

EXTSW  3/4" / .757” ID x 1 1/4” x 1" long 316 Alloy Stainless SHAFT spacer

Actual size .757” ID x 1.240” OD x 1.000” Long
(+/- .003 on all dimensions)

.030 inch Radius OD / Countersunk ID (no sharp edges)

Made in USA on a CNC lathe

It is a beautiful fit for your 3/4 stainless SHAFTS.

(Not good with a 3/4" bolt unless it is not sitting against the bolt head. The 3/4" bolts heads have a radius that is .780 in diameter. The bolt head will not sit flat against the .757 shaft spacer. If you need a spacer that will sit flat against the spacer, use our .783" ID x 1 1/4" OD x 1" long stainless spacer)


Just contact me if you need a custom size washer.


316 Grade Alloy Stainless contain a higher percentage of nickel than 304SS. The resultant composition gives a much improved corrosion resistance in many aggressive environments. The molybdenum addition ensures more resistance to pitting and crevice corrosion in chloride-containing media, sea water and chemical environments such as sulfuric acid compounds, phosphoric and acetic acids. The lower rate of general corrosion in mildly corrosive environments gives 316 SS a good atmospheric corrosion resistance in polluted marine atmospheres.


316 SS offers good strength and creep resistance and also possesses excellent mechanical and corrosion-resistant properties at sub-zero temperatures.
