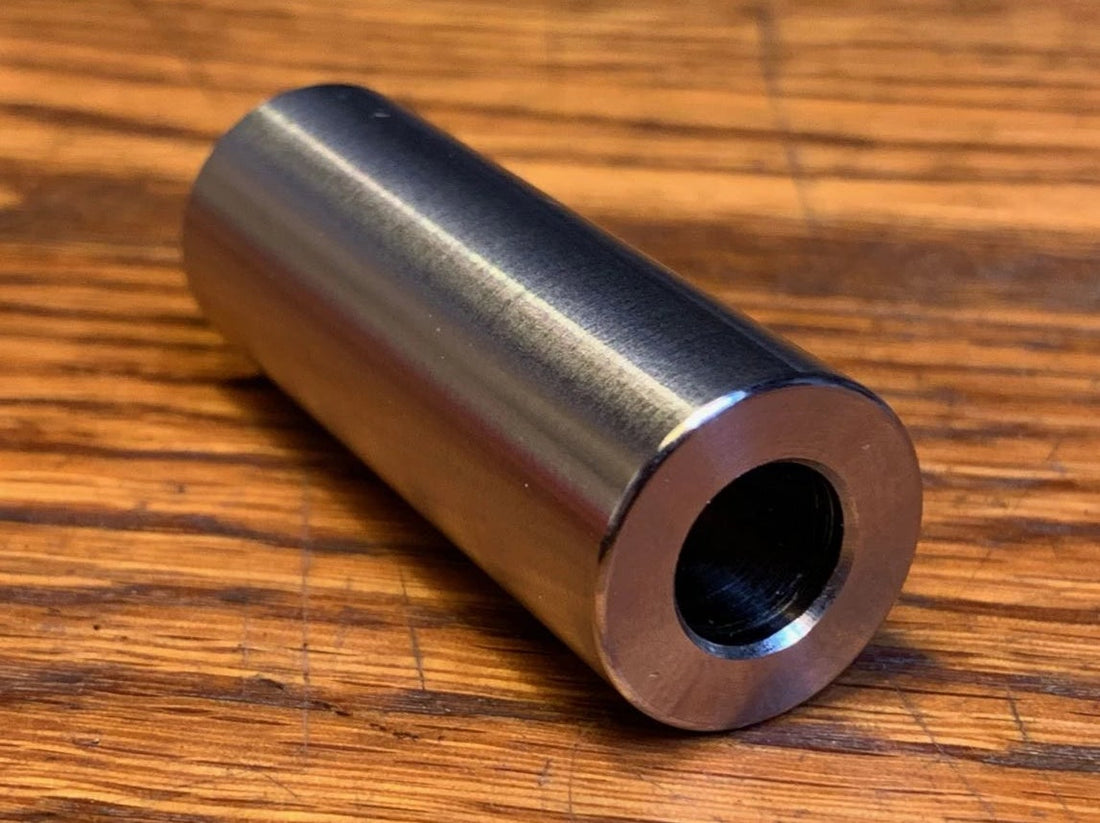

EXTSW 5/16" ID x 5/8" OD x 1 1/4" thick 316 Stainless Spacer
EXTSW 5/16” ID x 5/8” x 1 1/4" thick 316 Stainless Steel Spacers
Actual size .328” ID x .615” OD x 1.250” Long
(+/- .003 on all dimensions)
.030 inch Radius OD / Countersunk ID (no sharp edges)
Made in USA on a CNC lathe
It is a beautiful fit for your 5/16" or 8 mm Stainless Shafts, Studs, All-thread, Bolts
We can make as many as you need, just contact me.
316 Grade Alloy Stainless contain a higher percentage of nickel than 304SS. The resultant composition gives a much improved corrosion resistance in many aggressive environments. The molybdenum addition ensures more resistance to pitting and crevice corrosion in chloride-containing media, sea water and chemical environments such as sulfuric acid compounds, phosphoric and acetic acids. The lower rate of general corrosion in mildly corrosive environments gives 316 SS a good atmospheric corrosion resistance in polluted marine atmospheres.
316 SS offers good strength and creep resistance and also possesses excellent mechanical and corrosion-resistant properties at sub-zero temperatures.
